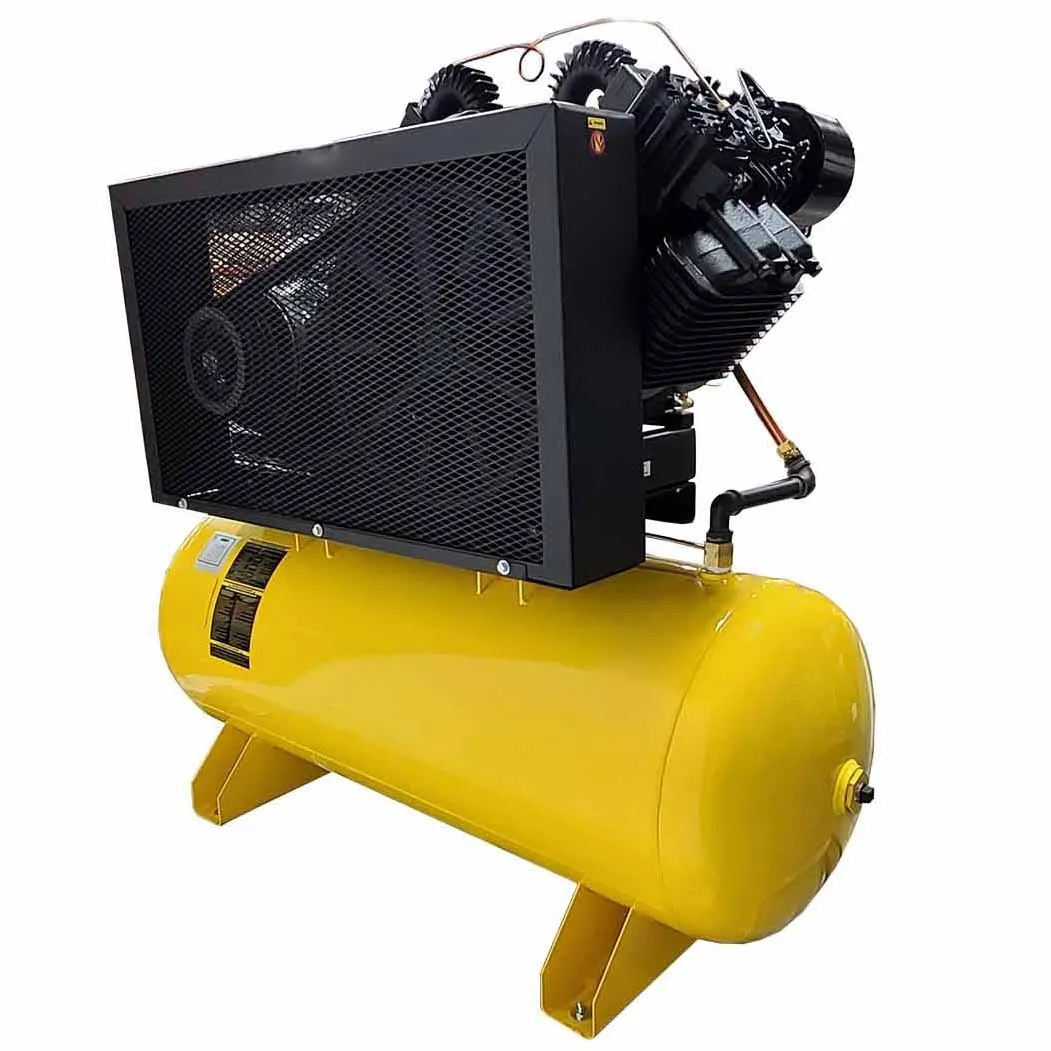

20 HP 2 Stage Air Compressor 3 PH 120 Gallon Horiztonal Tank
Discover the pinnacle of industrial air compression with the EMAX Industrial Plus 20 HP Air Compressor. Engineered for robust performance in demanding environments, this compressor boasts a heavy-duty 3-phase motor and a horizontal tank design. Delivering a substantial 82 CFM at 100 PSI, it ensures reliable operation for large-scale applications like automotive services, manufacturing, and more. Built with durability in mind, this compressor is a testament to EMAX's commitment to quality and performance, setting a new standard in industrial air compression technology.
Features and Specifications:
• Pump Model: APP4V2598TP
• Pump Material: Cast Iron
• Pump RPM: 600
• CFM @ 100 PSI: 82
• Max PSI: 175
• Tank Size: 120 Gallons
• Tank Orientation: Horizontal
• Tank Outlet Size: 2" NPT
• Required Voltage: 208/230/460
• Running Amps: 48/24 Amps
• Recommended Breaker Size: 70 Amps @ 208-230 Volts/35 Amp @ 460 Volts
• Oil Capacity: 4 Quarts
• Certifications: CSA, ASME, ETL
